Recommended Posts

Posted

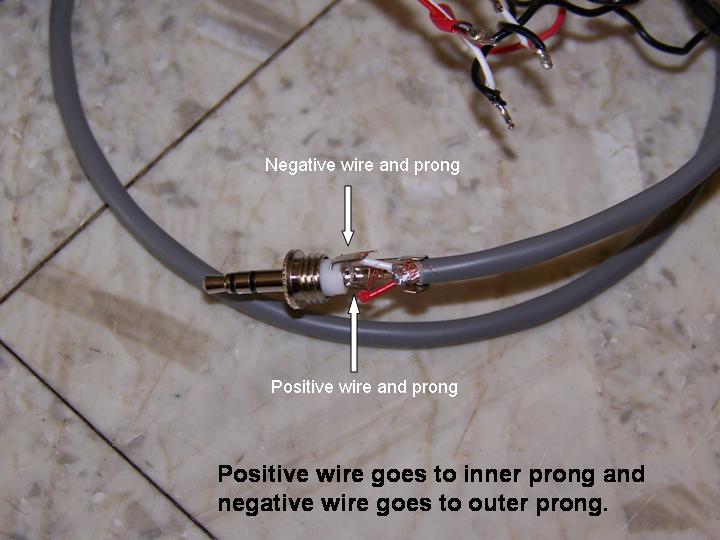

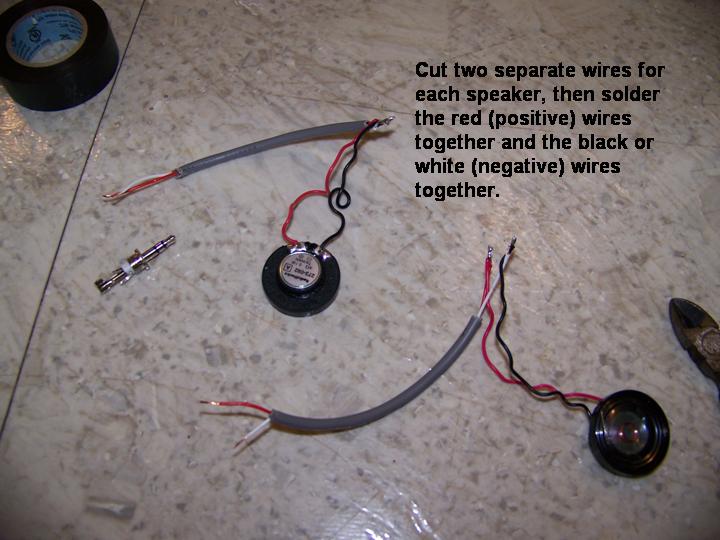

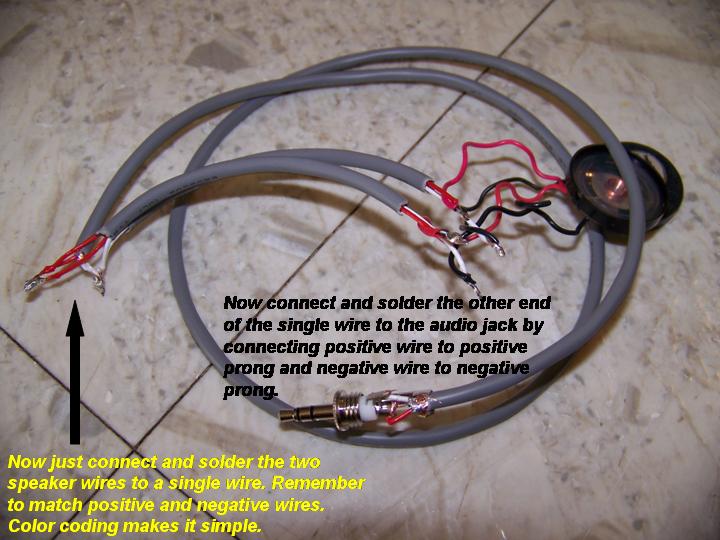

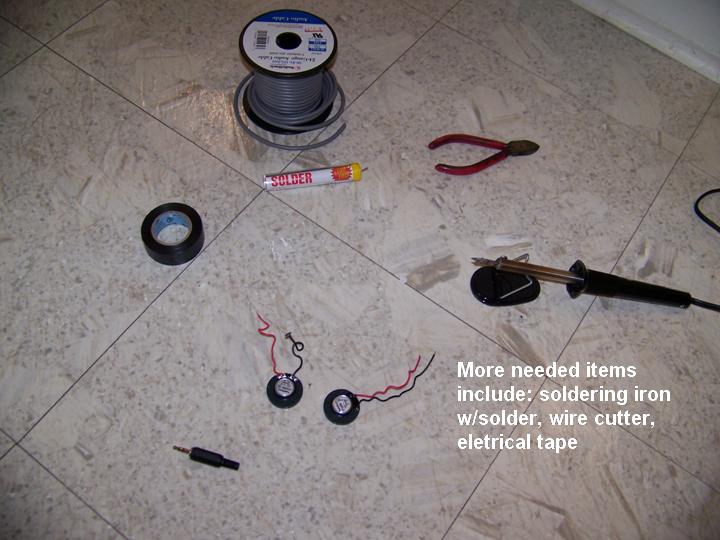

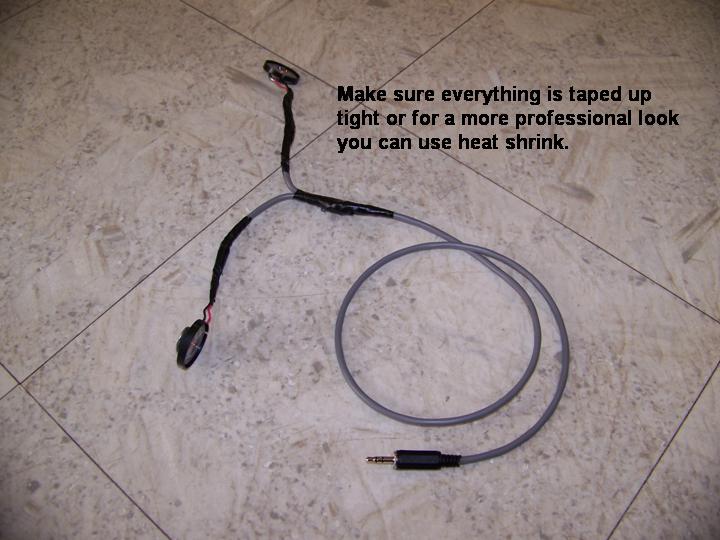

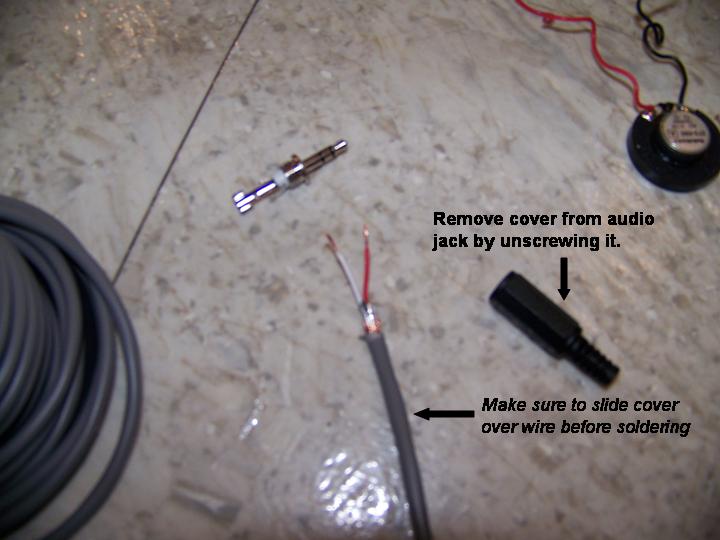

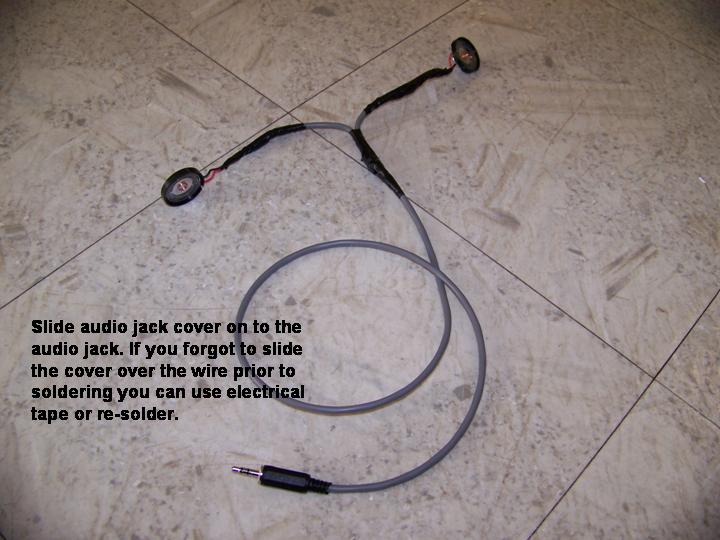

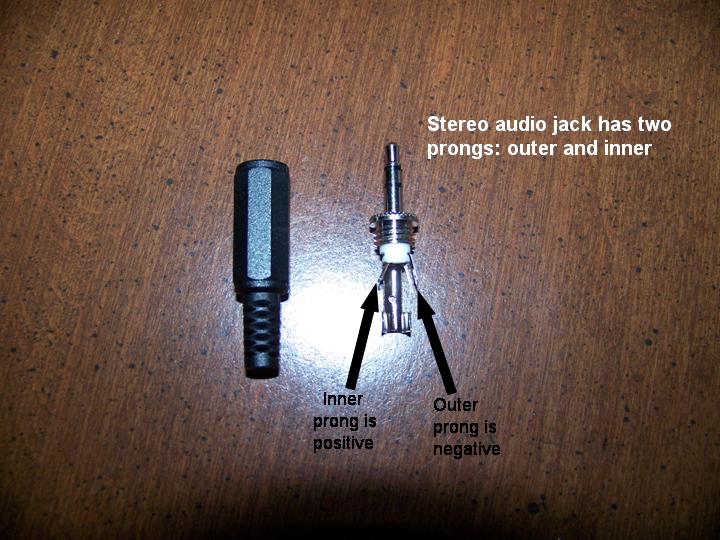

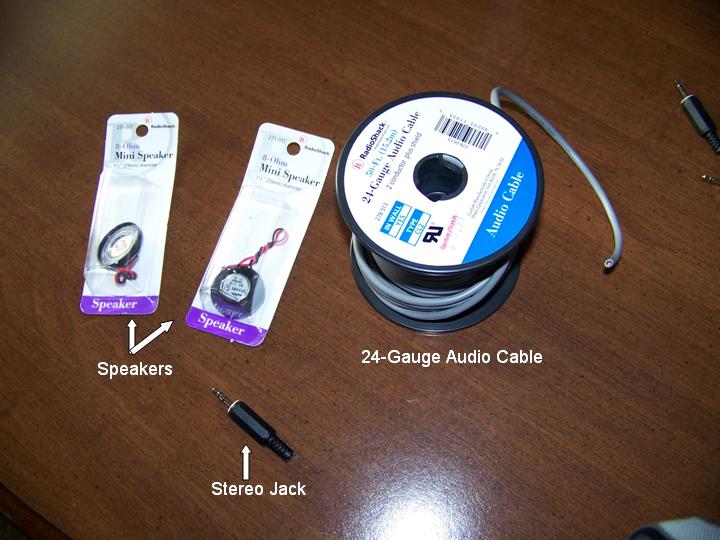

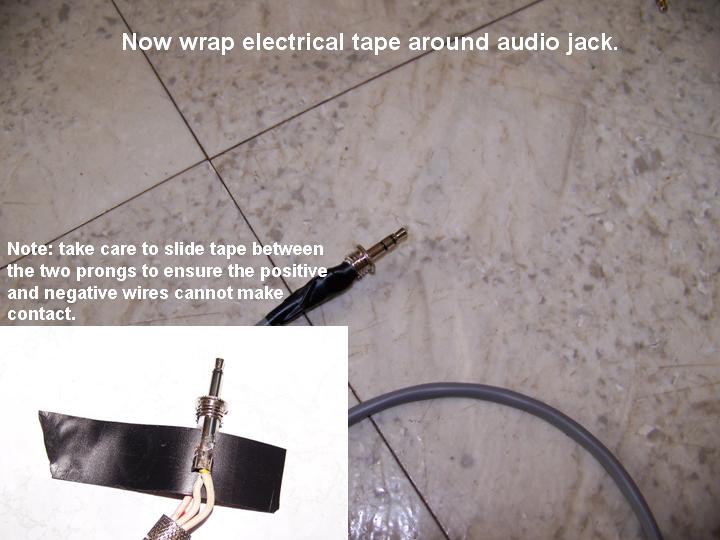

Here's a nice tutorial on how to hook up aerator speakers to a mini plug. Note: Mike used items he found at his local Radio Shack, other parts can be substituted for the ones shown.











Posted

Just as a side note, you can also wire the speakers in a series, if you want to lessen the number of connections.

Ā

For example, take the red from one speaker and connect it to the black of the other. Now connect the loose red and black wires to the mini plug. You can use extra wire if you need to extend it.

Ā

Since there is no balance (left vs. right) between the speakers, and the distance is so short, this also works well.

Ā

Just an option for wiring.

Ā

:trooper:

Posted
Just as a side note, you can also wire the speakers in a series, if you want to lessen the number of connections.

Ā

For example, take the red from one speaker and connect it to the black of the other. Now connect the loose red and black wires to the mini plug. You can use extra wire if you need to extend it.

Ā

Since there is no balance (left vs. right) between the speakers, and the distance is so short, this also works well.

Ā

Just an option for wiring.

Ā

:trooper:

Ā

Ā

Would yo uhave any pics on what you just described Scott. M I am a nuff nuff when it comes to electronics!

Ā

Thanks Dan

Posted
Would yo uhave any pics on what you just described Scott. M I am a nuff nuff when it comes to electronics!

Ā

Thanks Dan

Ā

Yep. I will get some taken and put up shortly.

Ā

:trooper:

Posted

Great Mod!

Ā

I?ll try to do this Myself to improve the speaker issue on my Bucket.

Ā

Thanks for the pics soldier!

Ā

Ā

Dargas

TK-1845

  • 2 months later...
Posted

How loud is the mini-speaker setup? I've always used my radio shack amp attached to my belt, but would rather have the sound come from my bucket. If this is just as loud, I would be interested in the upgrade.

Thanks for these tutorials.

  • 2 months later...
  • 1 year later...
Posted

The original post showing the parallel wiring should be louder than the series wiring but both will depend upon the amp being used.
