ANH TK build thread

[Roundarmor[TK]]

Breast plate is fully trimmed and snaps have been glued in place with e 6000


Sent from my iPhone using Tapatalk

[Roundarmor[TK]]

Ok , lower abdomen section, again work in progress here, center button pad looks ok. Not happy with the way the four on the right are sitting and the paint needs re-doing as well. Snaps are glued in place and ready. Small details here and think this will be ready soon


Sent from my iPhone using Tapatalk

[Roundarmor[TK]]

Ok, butt plate is trimmed and snaps have been glued in place. Snaps in the groin area are correct per level 3.


Sent from my iPhone using Tapatalk

[Roundarmor[TK]]

Ba
Click plate has been fully trimmed and snaps have been put in place.


Sent from my iPhone using Tapatalk

[Roundarmor[TK]]

Kid
Kidney plate has been trimmed and snaps have been glued in place.


Sent from my iPhone using Tapatalk

[gmrhodes13[Staff]]

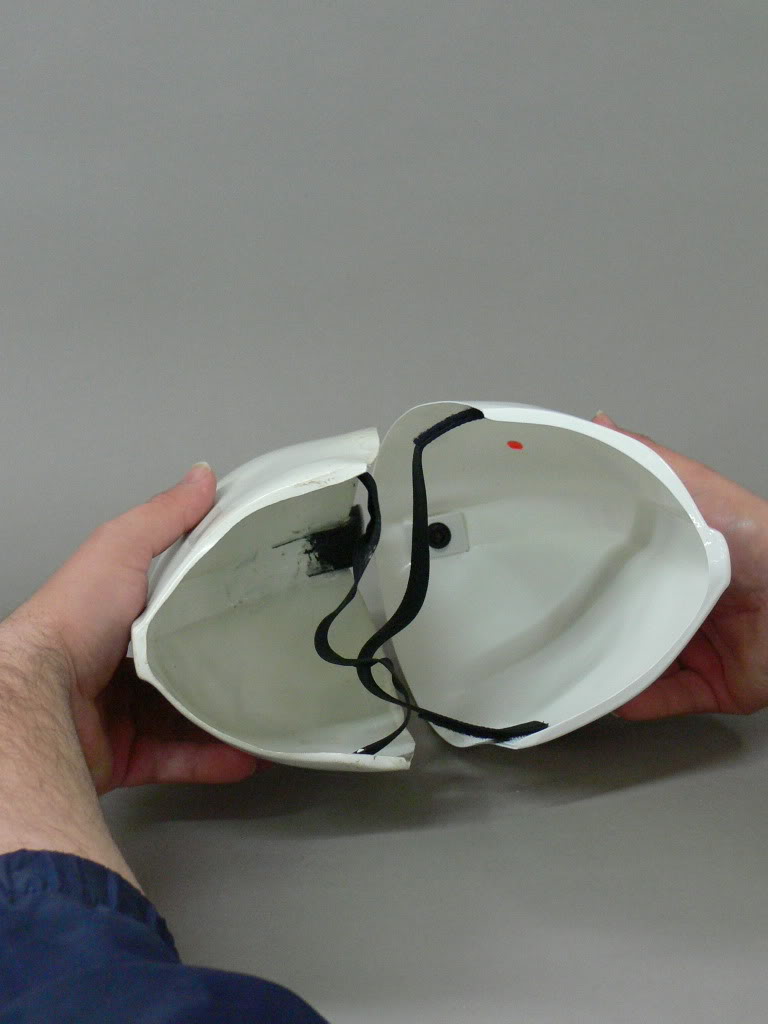

The elastic should be further down on the shoulder bells



You can remove more of the return edge from the middle raised section (and elsewhere if you want), will help sit down on your biceps better.









Normally when trimming any front facing armor the front/raised ridges are measured to fit a standard cover strip (@15mm) so from the raised area you would trim @8mm from the edge, notice you have large gaps between your cover strips and the raised areas, any sizing you would do from the back/rear side. Compare with mine



Note the raised ridges and coverstrips on build I did



Appears you have trimmed too much off your large ab plate, should have the base/plate around it.







[Roundarmor[TK]]

Post correction

[Roundarmor[TK]]

The elastic should be further down on the shoulder bells


You can remove more of the return edge from the middle raised section (and elsewhere if you want), will help sit down on your biceps better.



[/url]
Normally when trimming any front facing armor the front/raised ridges are measured to fit a standard cover strip (@15mm) so from the raised area you would trim @8mm from the edge, notice you have large gaps between your cover strips and the raised areas, any sizing you would do from the back/rear side. Compare with mine


Note the raised ridges and coverstrips on build I did



Appears you have trimmed too much off your large ab plate, should have the base/plate around it.






This was the way mine was molded by WTF and did not have a base to it.


Sent from my iPhone using Tapatalk

[gmrhodes13[Staff]]

12 minutes ago, Roundarmor said:

Mine did not come with a base on it. It was a recessed square

You may need to add one. WALT may have overt rimmed unfortunately



Some who have needed to fix there's cut a large plate and glue to the large ab, then fill the join with abs paste, then sand and polish





This one was filled with blade putty (automotive finefill putty)



It may not get picked for basic approval but will come up at L2 and L3



You could reach out to your GML and see if it can be approved how it is

[Roundarmor[TK]]

Thank you for that idea. I like this idea a lot


Sent from my iPhone using Tapatalk

[gmrhodes13[Staff]]

11 minutes ago, Roundarmor said:

Thank you for that idea. I like this idea a lot

Forgot to mention the only down side to using a filler (especially different color) is the fact that you need to paint at the end, even ABS paste can need a touch up as once dry and sanded it can look a different shade of white. For any touch up's I like to use water based acrylics, it's very easy to mix and add a touch of brown, black or yellow to white (depending on the color of plastic) to achieve a close to color match with your armor color.

[Roundarmor[TK]]

Worked on my TK again today and this post is simply to update the tread and keep a log of progress made toward becoming a TK


Sent from my iPhone using Tapatalk

[Roundarmor[TK]]

Add
EAdded elastic straps to the inside of the armor today


Sent from my iPhone using Tapatalk

[Roundarmor[TK]]

Started on the legs this weekend. Only trimmed enough to start the inside cover strips. Will wait for e6000 to dry totally before proceeding


Sent from my iPhone using Tapatalk

[Roundarmor[TK]]

Re glued elastic stapling on arm bells to bottom as they should be


Sent from my iPhone using Tapatalk

[Roundarmor[TK]]

Re glued elastic stapling on arm bells to bottom as they should be


Sent from my iPhone using Tapatalk

[Roundarmor[TK]]

Glued pop snaps in place on the biceps


Sent from my iPhone using Tapatalk

[Roundarmor[TK]]

Started trimming lower shins. Not glued yet. Need to measure more before I cut and glue.


Sent from my iPhone using Tapatalk

[Roundarmor[TK]]

Added pop rivets to groin area


Sent from my iPhone using Tapatalk

[gmrhodes13[Staff]]

Your shoulder strapping looks a little wide, just make sure the shoulder straps cover it









[Roundarmor[TK]]

Glued white rubber guards to black rubber gloves


Sent from my iPhone using Tapatalk

[Roundarmor[TK]]

Guards / straps have been heated and molded but not yet glued in place because I want to sew my Han Solo snap in place first


Sent from my iPhone using Tapatalk

[Roundarmor[TK]]

Sent from my iPhone using Tapatalk

[Roundarmor[TK]]

Your shoulder strapping looks a little wide, just make sure the shoulder straps cover it








I checked and it’s looking good


Sent from my iPhone using Tapatalk

[gmrhodes13[Staff]]

Just now, Roundarmor said:

I checked and it’s looking good


Check again once you are wearing your arms as the shoulder bells can pull this elastic sideways and will show if too wide
