ANH TK Stunt AM Build Nada

[Nada[TK]]

Hi Nada, you got this, hopefully your armour is assembled using E6000 so things can be pulled apart and re stuck.
You have some good help here and also some very good local help in the Southern Cross Garrison. We are all here to assist however we can.


Sent from my iPhone using Tapatalk

I have used E6000 my main build thread is in SCG, just waiting back from my GML for anything I need to change for approval


Sent from my iPhone using Tapatalk

[justjoseph63[Staff]]

For a better symmetrical look, I would suggest bringing up the right shoulder bell a bit, Nadas.  The biceps are aligned great, but the uneven bells are causing a lot more of the bicep on the left to show than the one on the right.  Almost there, sir!!



[Nada[TK]]

13 hours ago, justjoseph63 said:

For a better symmetrical look, I would suggest bringing up the right shoulder bell a bit, Nadas.  The biceps are aligned great, but the uneven bells are causing a lot more of the bicep on the left to show than the one on the right.  Almost there, sir!!



Thanks for the tip think its the elastic that does this might redo the elastic on the bells sometime to fix that.

[Nada[TK]]

Added some strapping between the biceps and shoulder bells to get a more alligned look to them


Sent from my iPhone using Tapatalk

[Nada[TK]]

How it looks on a manikin. (Pouldran is for my HWT I’m starting while waiting for feedback)




Sent from my iPhone using Tapatalk

[shadan[TK]]

It’s still on the GML forums for review mate. Hopefully not too much longer.

[Nada[TK]]

It’s still on the GML forums for review mate. Hopefully not too much longer.

Don’t worry about it, just doing little improvements where I can for my own comfort and looks, shoulder bells never connected right with my biceps so this helps that


Sent from my iPhone using Tapatalk

[Nada[TK]]

Suprised my cousins from NZ in the armour today the bicep straps have helped a lot with keeping them in position.
I’m addicted to walking around town in my armour haha.




Sent from my iPhone using Tapatalk

[Nada[TK]]

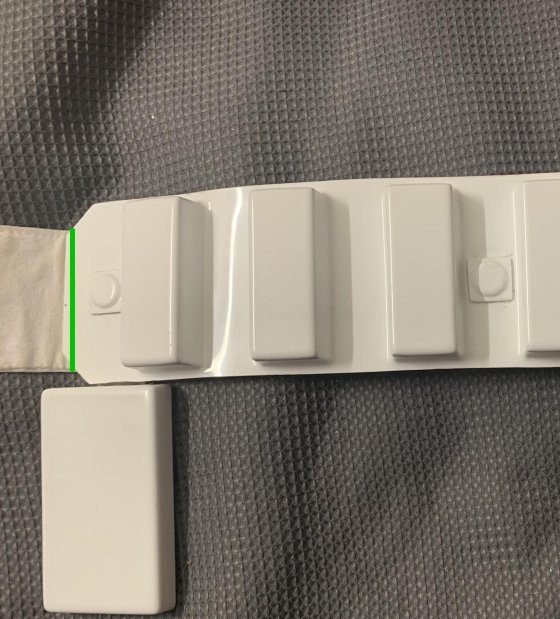

Decided to do some kore fixing of little things while I’m in the mood taking the feedback for my drop boxes I have put them much closer to the belt now looking like this


Sent from my iPhone using Tapatalk

[Nada[TK]]

Seeking advice, I believe my thighs may be to high up with not much gap between my lower ab armour and the thighs. Aswell as my knee gap between shins and thighs.

I believe my thighs are good but my shins may be the problem.
I am 5’7 and my kit is built for taller people as well as bigger like me.

Also any other points you would like to bring up is as well ATM I have only really fixed is the drop boxes.

This was my last approval photo from the front, back and sides (Taken 26th December):





Sent from my iPhone using Tapatalk

[Frank75139[501st]]

You could shave a bit off the bottom of the shins to give you a bit more room.

Make sure you do the bottom and do a small amount at a time. It might take you forever to get the right size but it’s better then going too far.


Sent from my iPhone using Tapatalk

[Nada[TK]]

You could shave a bit off the bottom of the shins to give you a bit more room.

Make sure you do the bottom and do a small amount at a time. It might take you forever to get the right size but it’s better then going too far.


Sent from my iPhone using Tapatalk

Thank you for the advice will be taking 5mm off each time till a good fit. Think I should take any more off my thighs?


Sent from my iPhone using Tapatalk

[Frank75139[501st]]

Thank you for the advice will be taking 5mm off each time till a good fit. Think I should take any more off my thighs?


Sent from my iPhone using Tapatalk

I’d start with some off the shins and see if everything sits better. Personally I feel the thighs are a bit too high. The pic angle makes it look like they are under your cod piece. Ideally you’d want it close but not directly underneath it.


Sent from my iPhone using Tapatalk

[Sly11[Admin]]

I agree with Frank on the shin trimming.

From the bottom, mark with an HB or B2 pencil so you can see youtr trim line.

Follow the contour shape of the shin. I use my finger and hold the pencil in such a fashion that I scribe a reasonably even new line to trim to.

In the image below it's approx 10mm of material to remove. Also as Frank mentions, better to start with small amounts of removal that larger so as to avoid making a mistake you can not correct.

I would then either use Lexan scissors or a Deremel with the sanding drum attachment to remove the material to just before the line then sand paper the edge smooth and try it on with you thigh armour to see if they sit better and allow good range of motion.

Hope this image better illustrates my explanation

[Nada[TK]]

Took 5mm off my shins movement is a lot easier and my thighs are resting a lot better not touching my ab plate when walking.
Another question is my butt plate low?




Sent from my iPhone using Tapatalk

[husky68[TK]]

You can compare to the CRL but you want all the back pieces to be together with minimal gap. With the ab connected to kidney that might set the height of your butt plate.


Sent from my iPhone using Tapatalk

[Nada[TK]]

You can compare to the CRL but you want all the back pieces to be together with minimal gap. With the ab connected to kidney that might set the height of your butt plate.


Sent from my iPhone using Tapatalk

Thank you see that now tightening up my back straps.


Sent from my iPhone using Tapatalk

[Nada[TK]]

Cut another 5mm off and it’s looking like this and redid the strapping for the back




Sent from my iPhone using Tapatalk

[Nada[TK]]

How is my armour looking it does not have the holster on drop boxes in to see the gaps between armour pieces.

Any criticisms or changes you would suggest would be much appreciated.

Photos:



Sent from my iPhone using Tapatalk

[Sly11[Admin]]

Great work Nada.

You could still shorten those straps connecting the But plate I think, perhaps also if the crotch strap is tight, making a longer one so it doesn't pull the but plate under so much might also alleviate the problem.

Your front alignment is looking much better



You might also consider sanding the sharp corners round I have circled in red and reducing or removing the lower return edge of the But plate. Its going to be more comfortable, the return isn't necessary there and it will help the plate to flex a little more.

[husky68[TK]]

Below may not be consideration for basic but just some notes for future improvements.



  Arms will look better with small adjustment to spacing to even out the balance a little more.  Some space between forearm and hand guard will save rubbing and damage to hand guard from posing with blaster,  mine started to rip soon after started trooping.  You could consider reducing the bottom of the bicep and forearms to give a more tapered look..  Opening at the bottom should be just big enough for your arm/hand to pass through with all return edge removed.



  After some trooping I decided to increase the overlap of my chest and ab pieces,  when moving and posing I found the chest plate to raise too much and lose the overlap.  It looks like you could lower your chest piece for the same purpose and give you a bit of space around your neck.



 It's helpful to always check back to CRL,  my advice is from limited personal experience.

Edited January 14, 2020 by husky68

[Nada[TK]]

Did some trimming today on my return edges moving them to 5mm on nearly all pieces




Sent from my iPhone using Tapatalk

[Nada[TK]]

Took 15 more mm off my shins it’s not like this when completing standing straight


Sent from my iPhone using Tapatalk

[husky68[TK]]

Remember to keep sniper knee from getting behind thigh armor. Some add padding to back of thigh armor so it stays closer in the front.


Sent from my iPhone using Tapatalk

[Nada[TK]]

Remember to keep sniper knee from getting behind thigh armor. Some add padding to back of thigh armor so it stays closer in the front.


Sent from my iPhone using Tapatalk

Still working on them I’m 5’7 and the AM kit is made for taller so I have a lot of trimming to do still. Aiming it to have a 1-2 cm gap between the thigh and sniper knee like I’ve seen in photos


Sent from my iPhone using Tapatalk
