What is that sewn-on snap piece for?

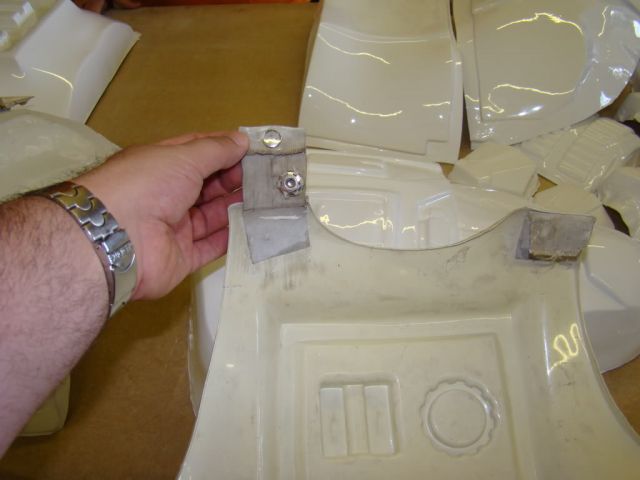

Attaches the shoulder bell to the shoulder strap (connecting the chest to the back). It is what keeps your arms on.


Sent from my iPhone using Tapatalk

[TheSwede[TK]]

33 minutes ago, Bud Spaklur said:

What is that sewn-on snap piece for?

Screen accurate way of attaching shoulder bell



[TheSwede[TK]]

1 minute ago, Bud Spaklur said:

Good thing for me is that I’m 5’7”, so I can probably have zero gaps! Lol.

GREAT!!

[wook1138[TK]]

The higher the better in my opinion

Oh yeah. I see. How did those guys walk around? Oh wait, they are just standing around getting berated .


Sent from my iPhone using Tapatalk

[TheSwede[TK]]

And...at 5"7 your at exact "Luke-hight"...so how about a Hero?

[TheSwede[TK]]

Just now, wook1138 said:

Oh yeah. I see. How did those guys walk around? Oh wait, they are just standing around getting berated .


Sent from my iPhone using Tapatalk

Yepp I rather look good than move well

[TheSwede[TK]]

Just now, Bud Spaklur said:

Is the sewn on snap needed for higher-level approvals?

No - interior strapping doesn`t affect any level of approval - then why the photos? To show others how you have done it so they can copy if they liked it.

But it`s a great felling knowing your suit is assembled just like they did it for the Movie, it is for me anyways and... it works really well

[wook1138[TK]]

5 minutes ago, Bud Spaklur said:

Is the sewn on snap needed for higher-level approvals?

Yeah, what Daniel said.

[wook1138[TK]]

Trimming shins for size. The front got the standard 20mm coverstrip, so all the sizing is getting done on the back. Pretty straightforward.

Did a fitting and figured the overlap. Top of shin.


Bottom


Measure overlap and divide by two. I always try to error on the large side, so I measure a little less than half.


Apply to other side.


Draw line and I cut with lexan scissors. Makes for a pretty clean cut.


Shins are sized (slightly on large side, just in case).


I will have to give the bottoms a hot bath to make the openings a bit more oval in shape. I think this is the right, my left shin is already a bit oval shaped.


Then I tackled the sniper knee and everything went... not as smooth.


Sent from my iPhone using Tapatalk

Edited January 23, 2018 by wook1138

[wook1138[TK]]

Sniper knee plate - round one.

Once the shin was sized, I tried to shape the knee plate to fit the shin. I already offset the shin halves so now it was time for hot water bath.


After a lot of bathes and trying to shape it, I tried to glue. I was making things worse with the hot baths and gave up.


I glued the front and right side first.


I figured I could wrestle the left side later with the help of a heat gun


It wasn’t looking too bad.


After I glued the left side (it was more than 24 hours since gluing the front and right side), things began to shift. I’m kind of a coward when it comes to the heat gun so I don’t think it did much. When I forced the left side into place, the rest of the plate moved.


Here is the result.






My main concern is how it fits at the front. It is not centred and not fitted very well to the front of the shin. I think I will pull it apart and try again. I need another tube of E6000. That went fast.



Sent from my iPhone using Tapatalk

[Steaditrooper[TK]]

Yeah. The sniper knee. Biggest challenge of my build. The left side is smaller than the return edge of the shin and will never look 100%. Mine is at an angle too from the front view. Couldn't be avoided. My only concern for you is the rather sharp corners I see from the underside shot. You might want to consider rounding them out a little to prevent it from splitting while you try to work it into place again. Here is a shot of where I got mine to after several hot water baths and removing almost the entire return edge on the bottom. I might have trimmed away even more. Looks like you've already done that. I'll get you a pic of my completed knee tomorrow.

.

Edited January 23, 2018 by Sean

[wook1138[TK]]

Thanks Sean.  I got the trimmed kit, so there isn't much room to round those corners (that is pretty much the way it came) - but I'll certainly see what I can do.  I removed some return edge from the parts that wrap around the sides - there was extra material there and it was just getting in the way.  It is interesting to see how the piece looks when not attached.  How long did you keep it in the water each time?  I suspect my lack of patience is getting the best of me.

[wook1138[TK]]

On 1/22/2018 at 2:25 AM, TheSwede said:

You can weather it - just not "Sandtrooper-style" here`s a great example on what you can to and still reach Centurion. (shout out to T-Jay)



That's great!  I thought I had read somewhere that you couldn't take a weathered TK to Centurion, but that level of weathering is exactly what I was thinking.  He did a great job with that!  Interesting... .

This is never going to end, is it?

[wook1138[TK]]

double post

Edited January 23, 2018 by wook1138

[Steaditrooper[TK]]

"Will this never end?" C-3PO. Yes, it will never end. So far I want to do a Sandtrooper and a Praetorian Guard. Oh, and a Death Star Gunner and a Biker Scout... Um, that's not what you mean, is it? That sniper knee! Dang it! I love the AP armour but the knee is, by far, the weakest link. It needs a re-sculpt to fit the shin. We have what we have to work with. The AP sniper knee has been approved many times before. You, Greg, are more than capable of doing this. It is frustrating but doable. I am going downstairs now to take a pic of my approved sniper knee. Be with you shortly...

[wook1138[TK]]

"Will this never end?" C-3PO. Yes, it will never end. So far I want to do a Sandtrooper and a Praetorian Guard. Oh, and a Death Star Gunner and a Biker Scout... Um, that's not what you mean, is it? That sniper knee! Dang it! I love the AP armour but the knee is, by far, the weakest link. It needs a re-sculpt to fit the shin. We have what we have to work with. The AP sniper knee has been approved many times before. You, Greg, are more than capable of doing this. It is frustrating but doable. I am going downstairs now to take a pic of my approved sniper knee. Be with you shortly...

That is exactly what I meant . Praetorian Guard would be awesome. My list includes sandtrooper, death trooper, and snowtrooper.


Sent from my iPhone using Tapatalk

[Harbinger[IPM]]

Every time a new film/video game comes out I add another costume to the ‘want’ list.

[Steaditrooper[TK]]

Here it is. My monstrosity.

This is the best I could get.

[Steaditrooper[TK]]

1 minute ago, Bud Spaklur said:

“Monstrosity” lol. Sean- help me out too man!

I'll help where I can Matt.

[wook1138[TK]]

Here it is. My monstrosity.

This is the best I could get.

Thanks for that Sean. You got a better fit for sure, but overall I’m not that far off. I’m a lot less worried about the alignment in the front. I might go for approval as is or adjust once I’ve got some higher priority tasks out of the way.


Sent from my iPhone using Tapatalk

[wook1138[TK]]

deleted



Edited January 24, 2018 by wook1138
Double Post

[wook1138[TK]]

Ugh never mind...realizing that’s SEAN’s sniper knee. But either way, can adding any pieces of ABS to the back of the knee help any or no?

I’ve seen builds where people have done that. I did test with a few extra pieces of abs in various spots but I didn’t see the benefit in my case. As for the front trimming, I trimmed to 20mm strip width - which is screen accurate. So I would expect things to line up the best they should. But would a wider front coverstrip edge work better? Maybe.


Sent from my iPhone using Tapatalk

[gmrhodes13[Staff]]

I actually cut a notch in the centre of my sniper plate the width of the coverstrip, helps to keep central while the glue is drying also allows it to go backwards further so looks better on sides.



I also applied some heat to both sides as I hated the slanted look, don't panic about using heat on these as they are quite thick. I just applied the heat on the two front corners and applied a little pressure.

[wook1138[TK]]

Thigh ammo pack. I hot bathed this piece earlier just to make fitting easier.

Just held the ammo pack up to the thigh and figured out the distance from the back return edge. I measured 6mm from the top edge.


Drill hole and install split rivet with #6 washer


Wrap ammo pack around to other side and marked hole.


6mm from top


Install second rivet and I will add a couple drops of glue to hold ammo pack up to cover seam.


Add some tape to hold and let dry.


Much easier than that f&@$ing sniper knee. Oh sniper knee, I shalt maketh thee my bit... .


Sent from my iPhone using Tapatalk

[Harbinger[IPM]]

Good work. Sniper knee... you will need all the clamps. ALL OF THEM.
