Madcow[TK] Posted April 15, 2018 Report Share Posted April 15, 2018 Thank you (once again). At this point, with all of my questions, I should just send my helmet and let you finish it Quote Link to comment Share on other sites More sharing options...
TK-OH-NO! Posted April 30, 2019 Report Share Posted April 30, 2019 Do you have any pictures of the bucket with the 1/4 inch neoprene but before adding the junction and additional helmet padding? Quote Link to comment Share on other sites More sharing options...
kamikaze[TK] Posted April 30, 2019 Author Report Share Posted April 30, 2019 I looked at all my WIP workshop photos, the only thing that comes close is this one that was before I installed the electronics. Shows the raw neoprene, no padding, and before a bunch of clean up. Hopefully it helps. Quote Link to comment Share on other sites More sharing options...
CrucialTD Posted December 14, 2019 Report Share Posted December 14, 2019 Take my $$ Quote Link to comment Share on other sites More sharing options...
kamikaze[TK] Posted December 16, 2019 Author Report Share Posted December 16, 2019 On 12/14/2019 at 1:25 AM, CrucialTD said: Take my $$ Quote Link to comment Share on other sites More sharing options...
Motogpnut Posted December 24, 2020 Report Share Posted December 24, 2020 This is by far, the best and cleanest installation I’ve seen so far. I commented on your video a while back but I had to say it again here. Great work. Quote Link to comment Share on other sites More sharing options...
kamikaze[TK] Posted December 24, 2020 Author Report Share Posted December 24, 2020 20 hours ago, Motogpnut said: This is by far, the best and cleanest installation I’ve seen so far. I commented on your video a while back but I had to say it again here. Great work. Hey! Thanks so much for the kind comments, I'm glad you like how the build came out and hope it may inspire people to do similar things with their buckets as well. Cheers and thanks again. 1 Quote Link to comment Share on other sites More sharing options...
Motogpnut Posted January 5, 2021 Report Share Posted January 5, 2021 On 12/24/2020 at 4:38 PM, kamikaze said: Hey! Thanks so much for the kind comments, I'm glad you like how the build came out and hope it may inspire people to do similar things with their buckets as well. Cheers and thanks again. On your video for the electronics you said you did another on how you replaced the lenses. I do not see that anywhere. I really like the way you did them, or at least what it looks like you did. Do you have a thread or video of that anywhere? I’d rather have small pieces just over the eyes than can be replaced, rather than a giant strip across the whole front. Plus the super thin acetate lenses are really flimsy and I’m worried about damaging them. I even have the welders shield ready to cut when I finally get my bucket. Quote Link to comment Share on other sites More sharing options...
kamikaze[TK] Posted January 5, 2021 Author Report Share Posted January 5, 2021 19 hours ago, Motogpnut said: On your video for the electronics you said you did another on how you replaced the lenses. I do not see that anywhere. I really like the way you did them, or at least what it looks like you did. Do you have a thread or video of that anywhere? I’d rather have small pieces just over the eyes than can be replaced, rather than a giant strip across the whole front. Plus the super thin acetate lenses are really flimsy and I’m worried about damaging them. I even have the welders shield ready to cut when I finally get my bucket. So I haven't made a video showing how to do that, but I do have a write up thread here that goes through the process I use for hard lenses that are removable. You can find it here: 1 Quote Link to comment Share on other sites More sharing options...
tat2trooper[TK] Posted January 5, 2021 Report Share Posted January 5, 2021 On 11/7/2016 at 1:15 PM, kamikaze said: Hi folks! I've had lots of people ask about various details regarding how I did my helmet interior. So, I thought it may be wise to just summarize it all so others may learn things or try to replicate some/all aspects of what I did. My goal was to have all my electronics systems embedded inside my helmet, with individually switchable systems, whilst all being very clean and hidden along with a blacked out look. No problem right? For reference, this is what the interior looks like. Note that inside there I have 3 battery banks, four fans, a powered condensed microphone, the iComm unit and an Aker amplifier, all attached to a switchbox: http://i.imgur.com/UOVliLh.jpg Ok so I quickly found out that it would take quite a wall of text to summarize how to do this build, so I decided to throw a video together to summarize it all instead! https://youtu.be/eYeUpAHOSHM The basic gist is this: 1) Black out your bucket as you desire, I used 1/4" thick neoprene to line it. 2) Create a junction box by leveraging your hovi bolts onto a custom backplate which your switch box also get screwed into. 3) Refine your project box so it has the right size and number of switches for your application (I have 3 subsystems, others may have more or less). 4) For every one of your systems make a custom harness where the electronics run through your switch to its power source, ensure that the switch is the only mechanism to turn it on (so if the electronics had their own switch keep it stuck in the on position and let the switch you use at the project box be the one that controls it). 5) Using high quality velcro, mount all your electronics up at the top, and/or your fans at the bottom. 6) Route all of your wires that need to run from your electronics down to the switchbox in a clean loop, and everything else tied down neatly at the top. Use tubing to wrap the wiring with the least amount of wire and tubing required. 7) Add velcro to the bottoms of your electronics at top and add black padding to hide it all and make a comfortable fit. 8) Use any extra helmet padding as necessary to ensure you have a solid and snug fit. 9) Optional step: You may want to do this at the start but have your eye lenses done up in a manner that will work well with the clean look of your interior (see my other howto to check out how I did mine). Here are some helpful detail shots that highlight some of what I was referring to within the video. One shows all the bare electronics before any lining or hiding was performed at the top. Another shows a detail of the swicthbox at the bottom to show how the hovi bolts and the project switch box mount into the backplate. http://i.imgur.com/4RJjJBl.jpg http://i.imgur.com/LMQDdi3.jpg Here are some links to the more unique or non common materials I used: Project box: https://www.amazon.com/gp/product/B0002BBQNM Flip switches: https://www.amazon.com/gp/product/B001JT7D0G Neoprene lining: https://www.amazon.com/gp/product/B00488DB10 Helmet padding: https://www.amazon.com/gp/product/B00A4TNQ8A 12V fans: https://www.amazon.com/gp/product/B015S5XFJE 12V battery box: https://www.amazon.com/gp/product/B00VE7HBMS All right folks, enjoy and I hope this helps you with your own helmet builds. Post any questions or your own interiors! wow!! Great job. Goals right there. Quote Link to comment Share on other sites More sharing options...
Motogpnut Posted January 5, 2021 Report Share Posted January 5, 2021 3 hours ago, kamikaze said: So I haven't made a video showing how to do that, but I do have a write up thread here that goes through the process I use for hard lenses that are removable. You can find it here: You’re the best dude. I knew you had something up your sleeve. Lol Quote Link to comment Share on other sites More sharing options...
BikeMan Posted October 5, 2021 Report Share Posted October 5, 2021 How did you attach the neoprene to the helmet. I don't think you ever mentioned that step in detail, or I am totally blind. Quote Link to comment Share on other sites More sharing options...
kamikaze[TK] Posted October 5, 2021 Author Report Share Posted October 5, 2021 5 hours ago, BikeMan said: How did you attach the neoprene to the helmet. I don't think you ever mentioned that step in detail, or I am totally blind. The underside of the neoprene strips I used is an adhesive layer, so it just sticks in place. It's pretty strong too, I haven't had it peel off any even after several years now. Quote Link to comment Share on other sites More sharing options...
BikeMan Posted October 7, 2021 Report Share Posted October 7, 2021 (edited) On 10/5/2021 at 7:47 AM, kamikaze said: The underside of the neoprene strips I used is an adhesive layer, so it just sticks in place. It's pretty strong too, I haven't had it peel off any even after several years now. Ok please excuse my ignorance here but could you define what the "adhesive layer" is? I am about to do my helmet up for Halloween and I have all the stuff here for it. I am just unsure of two things. How to cut the neoprene to lay in the helmet nice and neat, like do I measure it first or just cut strips that fit and then conform them as I go? And the method of sticking them in there I am unsure of in detail. Like what is a good adhesive layer? You used a certain glue, or double sided tape? Sorry to grill you, I just really admire your work and hope mine can look half as good. I appreciate any time and answers you give, thank you. Edited October 7, 2021 by BikeMan Quote Link to comment Share on other sites More sharing options...
kamikaze[TK] Posted October 7, 2021 Author Report Share Posted October 7, 2021 12 hours ago, BikeMan said: Ok please excuse my ignorance here but could you define what the "adhesive layer" is? I am about to do my helmet up for Halloween and I have all the stuff here for it. I am just unsure of two things. How to cut the neoprene to lay in the helmet nice and neat, like do I measure it first or just cut strips that fit and then conform them as I go? And the method of sticking them in there I am unsure of in detail. Like what is a good adhesive layer? You used a certain glue, or double sided tape? Sorry to grill you, I just really admire your work and hope mine can look half as good. I appreciate any time and answers you give, thank you. Yeah so the product I used and linked in the details has one side neoprene, and the other side of it you peel off and it is a sticky tape side, so you cut a strip of desired length from the roll, peel off the back, then you can place it where you want. It takes a bit of practice to get the strips cut and aligned right, but there's a lot of give in the product so you can shimmy things in easily. Start slow and practice with cutting strips and aligning them. Eventually you'll be faced with a taper situation since buckets have non-square geometry to them. It may be frustrating at first but just take your time and in the end it will look great. I've done many buckets now like this and they all turn out just awesome in the end. Quote Link to comment Share on other sites More sharing options...
kamikaze[TK] Posted October 7, 2021 Author Report Share Posted October 7, 2021 I guess I should mention that after you peel off the back and stick it, you don't really move it. So you can cut off long strips and play with their size/shape aligning next to the last stuck on piece first if you want, then when you think you're good with it peel off the back and secure it in place. It's hard to describe this but when putting two strips together on the bucket, the one going in can be placed almost into the side edge of the next one, such that when you place it down finally you can just apply a bit of pressure with your finger between the two of them and create a fairly seamless join... I guess what I'm getting at is this avoids creating small gaps between your lines. Another tip is what to do with the very top of the bucket. You really don't cover 100% of the internal with neoprene, maybe go up 80-90% of the height. The very top crown of the bucket will be a small open zone, maybe 4"-6" in diameter depending on how your project went. This is where a nice piece of circular helmet padding finishes up the deal perfectly (and makes for a nice comfort). Generally speaking, step one is lining the helmet with the neoprene, step two is using pads on the top for that part, but also placed around the helmet as needed to create a very snug and secure/comfortable fit. Quote Link to comment Share on other sites More sharing options...
BikeMan Posted October 9, 2021 Report Share Posted October 9, 2021 (edited) Thanks again for all your help. Apparently when I bought this bucket a year ago I bought everything following your post here, but the adhesive has been out of stock since even back then. That's why I got confused, I got everything out of storage to finally start the project and was like "why is this one step not accounted for, I have all this other stuff already". Just found a new brand of neoprene that is in stock on amazon that matches your original link! Edited October 9, 2021 by BikeMan 1 Quote Link to comment Share on other sites More sharing options...
gmrhodes13[Staff] Posted October 9, 2021 Report Share Posted October 9, 2021 I have also seen a sticky backed felt used before and sticky backed soft velcro, I've often wondered how these would hold up, at times it can get pretty wet and sweaty in the bucket and no doubt some would soak in. A few other options Self adhesive EVA sheets I ran across this mod, his helmet used plasti dip and cheesecloth A good idea also is when using padding to have that on velcro for ease of removal and washing Quote Link to comment Share on other sites More sharing options...

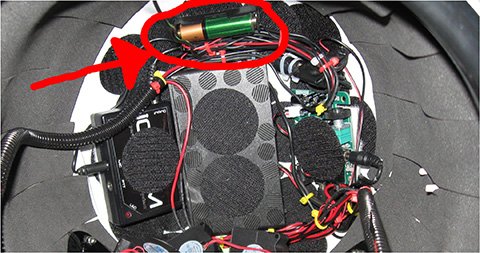

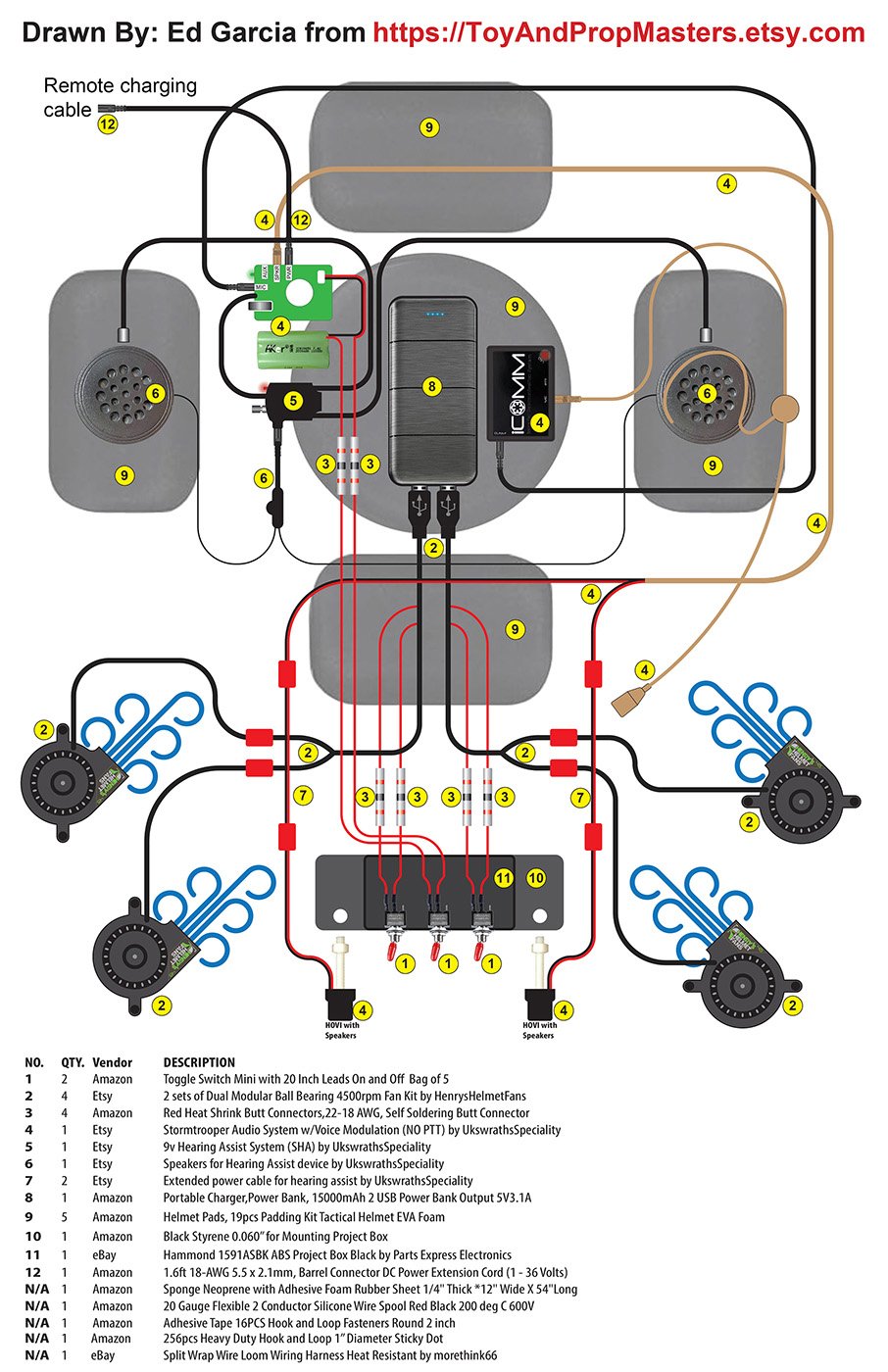

edgarcia407fl Posted August 7 Report Share Posted August 7 Hi everyone, Looks like I arrived late to this thread. I saw the video posting for "TK11778's HOW TO: Super clean helmet electronics/interior build." Using the video and photos as a guide, I did a simple wiring diagram attached below. For the (amplifier / AKOR battery), I cut open the shrink wrap sleeve on the unit and spliced the red wire to a remote switch. I don't know where that 'AA' battery (in the red circle) with the green bottom in the photo below powers. Does anyone in here know what its used for and what it provides power to? As for the wiring diagram, does it look correct? Since I am not electrically inclined, I would like to reach out to this group to see if anyone could shed some light into my build. So far I have the voice modulation system as well as the external audio headphones and 4 fans from Henry. Any information would be greatly appreciated, thank you. Quote Link to comment Share on other sites More sharing options...
gmrhodes13[Staff] Posted August 7 Report Share Posted August 7 48 minutes ago, edgarcia407fl said: Hi everyone, Looks like I arrived late to this thread. I saw the video posting for "TK11778's HOW TO: Super clean helmet electronics/interior build." Using the video and photos as a guide, I did a simple wiring diagram attached below. For the (amplifier / AKOR battery), I cut open the shrink wrap sleeve on the unit and spliced the red wire to a remote switch. I don't know where that 'AA' battery (in the red circle) with the green bottom in the photo below powers. Does anyone in here know what its used for and what it provides power to? As for the wiring diagram, does it look correct? Since I am not electrically inclined, I would like to reach out to this group to see if anyone could shed some light into my build. So far I have the voice modulation system as well as the external audio headphones and 4 fans from Henry. Any information would be greatly appreciated, thank you. Firstly I'd say make sure everything will fit in your helmet, some helmets are very small and only need a small amount of padding inside, especially on top of your head, I have a 5mm piece of foam in mine. Also note you have to turn your helmet to the side, get over your nose then turn straight, you have to remember this when adding electronics. I only use 2 fans, separate switches and most of the time using one is enough, 2 for sweaty hot troops, 4 is a little overkill in my mind. I don't have anything else in my helmet as I have neck issues so weight is an issue. I used hearing assist once and removed it, picked up too much background noise in a busy convention, but others like them Many are using the 5V usb battery packs these days, you can get quite thin ones, just depends how much you want to control and for how long. The AA battery shown could be an external mod for the Icomm unit, many of us make this mod rather than changing out the inner battery when it dies, mod is here Or it's to power something else, there's plenty of these threads on the forums for inner electronics so would pay to research more before committing to one design. Here's another setup Tony @ukswrathsupplies a few things for the helmets Like a lot of others I prefer having electronics in my chest, Icomm static burst and Aker am, you can use a wired or wireless mic with these. Also check out Tramp on FB https://www.facebook.com/trooperamp/ Quote Link to comment Share on other sites More sharing options...
ukswrath[Staff] Posted August 7 Report Share Posted August 7 Yea, I have an entire build dedicated to stuffing everything imaginable into one's helmet I had a separate 12/5v battery pack I wore on my person that powered everything and was expandable. As Glen mentioned, so long as you have the room for all of it you're in luck. That's the main reason a use a hard hat insert in all my helmets, it frees up real-estate. That said, I'd be glad to share with you how I did it if you're interested. 1 Quote Link to comment Share on other sites More sharing options...
