ATA Armor Build_My First TK

[russellr2d2[TK]]

Building the belt continued: The Holster and boxes

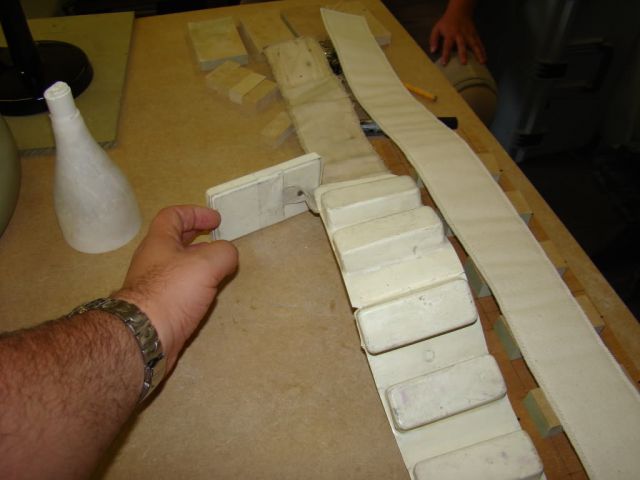

Adding the belt boxes via industrial strength Velcro strips.







Look Ma' no rivets!

Edit(several days later) I may end up using a rivet. I find the E6000 pulls away from the top a bit when I open the boxes.











The box positions are flush with the end of the belt and nearly touching at the top of the box.









Both boxes on the belt.









Installing the holster. I first refer to my research and drawings to get the correct location.









All screw locations are marked. You got to get this right the first time or you will end up with holes in your beautiful white canvas belt.











Using a soldering tool to burn in a hole. there should be a piece of plastic running through your belt or it may sag with the weight of your blaster.











Leather can be drilled like wood! You even get the shavings.











The Chicago screws in the back of the belt. the slotted side goes on the inside of the belt.











The flat side of the screws goes on the outside of the belt. they look like pulled rivets to me.











My Doopy Doo's blaster in the nice Darman made holster I purchased here on W.A.. It is 9oz leather, very stiff to support the weight of the blaster

leaning on it.











NOW I get to do what I have been waiting weeks to do.....glue on the color button plates. I have not done this yet because I was working on the armor and

laying it down on the front on my workbench. I did not want to scratch up the beautiful buttons.









YUM! Ready for a NOVUS polish party! Tomorrow!!!!!!







GLOVES and handgards!



I just E6000 them onto the fabric back of the gloves. These are only for basic approval.

For more advanced approvals I already have my rubber gloves and will order the flexi vinyl covers.



Edit: I know I have to put them on after the forearms. But with the big ATA forearms it will be easy to stuff the gauntlet into each forearm end (been there -done it).







exciting yes!?







Stay tuned to this channel for more adventures in TK armor building !



Coming up next is.....the Thermal Detonator Straps !!! A chilling, mind bending adventure with aluminum strips !

Edited May 26, 2015 by russellr2d2

[The5thHorseman[501st]]

You want it perfect so i'll throw this out, even if these are really little details:

- Your ammo belt isn't properly trimmed. The horizontal cuts should be right on top and below the boxes. You still have some flash around on yours:



- Also the corners of the abdominal buttons should be squared and not rounded as you did:

[russellr2d2[TK]]

Thanks Tony, easy fixes. Good ol' E6000!



Good to have more eyes on this build.

The Emperor would be pleased!







Sent from my iPhone using Tapatalk

Edited May 23, 2015 by russellr2d2

[russellr2d2[TK]]

And here are the fixes!



The belt has a heat-bend I put in it so it wraps around my armor better than if it were left flat.



BUT, this makes a problem here when I want to cut off the edges. I had to flatten it out so I can work on it.



Here is how I did that!











Here is a pencil mark where I will cut off the return edge on the belt. Right up to the radius of the boxes.



Used a new Exacto blade to score along the ruler/pencil line.









Off it comes! Pretty rough cutting but sanding will cure that.













Sanding along the entire edge of the belt evens out the rough cutting and snapping.

















Tah-Dah! No more return edge. The edge is brought right up to the radius of the boxes. No more can be cut off.











ON to the button plates. I needed to get rid of the radius corners on each button plate.



I did this on my sander just to make it quick. Glued back on now.











Sharp corner button plate.











Another little detail.



On my right side I use this big wide tab that goes into a slot. It keeps the opening side of the clamshell solid and even when shut.

Elastic straps pull it together closed but, they often open a bit. This black strip will hide the plastic tab against my black under-suit when the side opens up.



Just a little detail that makes things extra spiffy.







Hopefully tomorrow the TD straps and then about done and ready to submit to my GML !!

Edited May 24, 2015 by russellr2d2

[russellr2d2[TK]]

Making the TD belt clips:



FIRST look and learn from the master in this video. EDIT: his screw locations are not entirely correct see below.



http://www.tk1336.com/stormtrooperaccessories.html







Purchase 1 x 1/16" strip of aluminum. Cut off two 9" long pieces and tape them together.









Drill holes that will be just a hair smaller than the threads on the #6 round headed screws.



The first hole is 1" from one end. The second hole is 1.5" from that hole (not from the end).









Here are the screws I found at Orchard Hardware. Every hardware store should have them. Round top-single slot-#6 size.









I copied the video and screwed the strips down to a piece of wood to hold them while I sanded a nice finish into them.







Pretty!











Cut a length of pipe to use as a buck for the two alum. strips. You will screw the strips onto this pipe for bending them around it.

The screws have to be TIGHT!









In the vice ready for the first bending step.









Already getting dinged up. But they cleaned up really easy. Get the short end of the strip to bend down against the tube as much as you can.











Bend back then...











then again (see the video) They came out almost perfect. But later you will see this makes no difference at all....it will look great!

(what happened to my OCD !!! )









Squeeze the heck out of that sucker! Don't worry about smashing the pipe, you need to over tightening to get the aluminum to take a bend as far as you need it to. That short end is really hard to get bent down enough.









Cut off the long end so the end clears the screws. Its just an eyeball thing.









I sanded the ends a bit rounded where the clip goes behind the belt. I don't want anything catching on the belt and I don't want the clip scratching the hell out of the armor. Everything is softly rounded with fine sandpaper.



Keep the front end with sharp corners where everybody will see it.









Tah-Dah!









Now the screws are painted black. I read that the control panel should be facing up when this is on the belt.



Edited May 25, 2015 by russellr2d2

[ukswrath[Staff]]

The detonator, the clips, everything looks horrible, I think you should send it to me immediately for proper use, I mean disposal.



Sickeningly perfect as usual Russell

[russellr2d2[TK]]

I'll press the code and send it right up !





Sent from my iPhone using Tapatalk

[The5thHorseman[501st]]

Unfortunately this tutorial is certainly not perfect... The first screws should be located right under the edge of the clips:

Edited May 25, 2015 by The5thHorseman

[ukswrath[Staff]]

Unfortunately this tutorial is certainly not perfect... The first screws should be located right under the edge of the clips:





ZZZZZZZZZZZZZZZZZ!

[russellr2d2[TK]]

Dang! I must move the screws today! But how to preserve the straps?



Maybe I'll fill the two holes and Rub n Buff will color them and be done with it.



Interesting that I have been staring at that photo for weeks and missed that detail. I see they would help hold down the ends of the straps.





Sent from my iPhone using Tapatalk

Edited May 25, 2015 by russellr2d2

[The5thHorseman[501st]]

What you can do is choping off the excess on the clips, and then unglue the main panel of the TD and reglue it in position. The panel might become a little bit too low but i think it should be fine.

Edited May 25, 2015 by The5thHorseman

[Daetrin[Admin]]

Wow, this is a fantastic thread.  I'm loving all the pix as you progress.

[russellr2d2[TK]]

Yea I don't want to rotate the panel down it needs to be pointing up. I have seen several approvals where this was mentioned so the GML's are looking at it. I think I can fill the old hole and a product called rub n buff will color it metallic silver pretty good.



Thanks for watching out!





Sent from my iPhone using Tapatalk

[russellr2d2[TK]]

Here is the fix of the DT:


Moved the screws up near the edge of the straps as is cannon.




You can see the old holes in this photo but they are turned a bit downward so they will not be very visible on the TK belt.

I'll call this one done!





Friday? photos for my BASIC APPROVAL !!!! and application into the 501st!

Edited May 27, 2015 by russellr2d2

[russellr2d2[TK]]

Wow, this is a fantastic thread.  I'm loving all the pix as you progress.





[russellr2d2[TK]]

CARNAUBA WAX !



Waxed every inch of my armor in preparation for the photo shoot today.  Hopefully I can upload my BASIC approval photos to my GML this evening.



QUESTION:  When do I send in my submission to the 501st?  Does my GML send in my photos?





[ukswrath[Staff]]

Your GML will do it.

[ukswrath[Staff]]

BTW you missed a couple spots... look really close





Ah hahaha  made you look didn't I



EXCELLENT JOB!

[russellr2d2[TK]]

OH !!  LET ME HIT THAT WITH A LITTLE MORE WAX !



[ukswrath[Staff]]

AH HAHAHA

[russellr2d2[TK]]

This is it !   Basic Approval photos !

This is what is going to my GML.



















[charlesnarles]

Congrats on finishing. Shiiiiiney!ðŸ˜

Edited May 30, 2015 by charlesnarles

[spacebrew]

Don't want to burst your bubble but the control panel is upside down





Sent from my iPhone using Tapatalk

[russellr2d2[TK]]

Ohh it should be the other way around?

Good eyes thanks! That's an easy fix thanks to E6000.



Tomorrow it gets turned around.



Sent from my iPhone using Tapatalk

Edited May 30, 2015 by russellr2d2

[Tusken RTT]

Good eye spacebrew;  build looks fantastic though!  Expect a TK # soon!
