Latest Holster Diagram/Template?

[Seeker[TK]]

I've look and look, but found older templates. Can someone direct me to the newest version?



Thanks in advance.

Seeker

[Tray[TK]]

who's newest version?

[Seeker[TK]]

I believe at one point Troopermaster was going to post one. Not sure if he did or not.

[Tray[TK]]

gotcha

[Seeker[TK]]

I think he only had minor tweaks, not something huge. Probably a typo or placement of a number. I'll be making my holster this weekend, I just wanna make sure I dont miss anything.



Thanks Tray!

Edited January 11, 2013 by Seeker

[TK bondservnt[501st]]

Edited February 2, 2022 by gmrhodes13

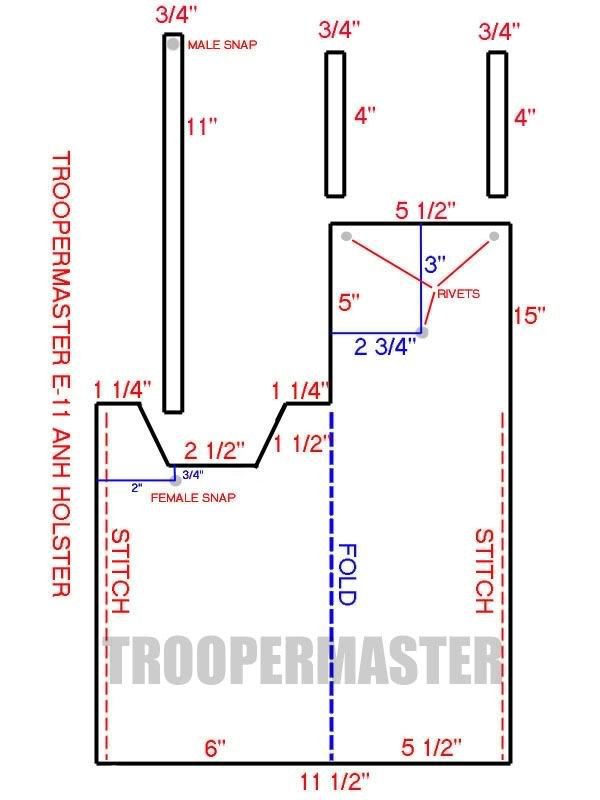

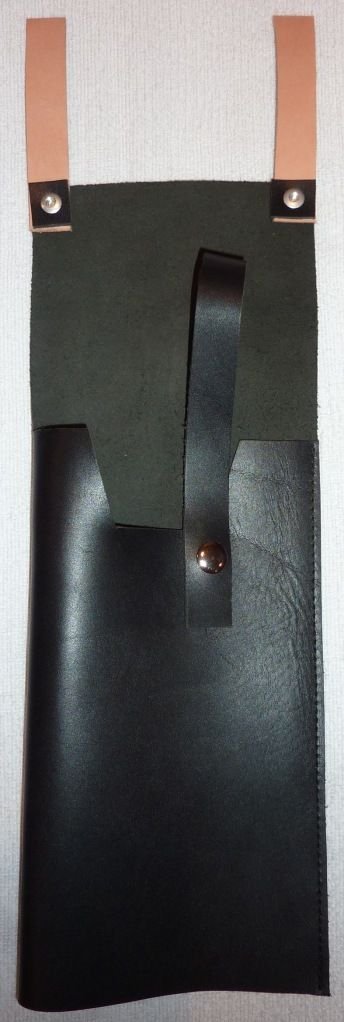

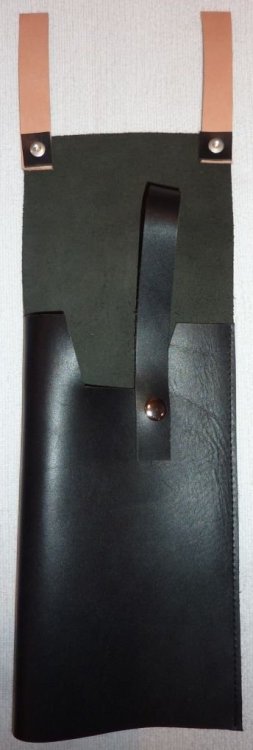

photo updated

[Seeker[TK]]

Nice! Thanks Vern!

[TK bondservnt[501st]]

all you need to do to modify the design to make it even better



strap 12" instead of 11"

use chicago screws for the top strapping instead of rivets.

for the handle strap use a cap rivet after fitting the blaster.

[Seeker[TK]]

Nic! Thanks man. Thanks for extra tip. But I'm also thinking I might even go lower on the 4 inch straps that connect to the belt since I'm short as in height.



So I probably go 3 or lower.

[TK bondservnt[501st]]

keep them 4" and only with a 1" gap below the belt.



your height has little to do with the placement.



it's not a quickdraw anyway!

[Seeker[TK]]

That's right. Keep it long, but Chicago screw it low.

[TK bondservnt[501st]]

it won't matter when you're wearing your lid and feeling for it.

just put it in the standard location.



putting it lower only makes it look wrong, we're going for standarization, not customization.

[Tolo[TK]]

Hello,



How thick should the leather be?



Thanks



Eric

[TK bondservnt[501st]]

leather should be thick leather intended for chaps/saddlebags or straps should have little to no texture and be matte finish

not garment or belt thickness but between that



Edited February 2, 2022 by gmrhodes13
link not working removed

[Tolo[TK]]

On 1/19/2013 at 11:16 AM, TK Bondservnt 2392 said:

leather should be thick leather intended for chaps/saddlebags or straps should have little to no texture and be matte finish

not garment or belt thickness but between that









Thanks for the info mate. Much appreciated.

Edited February 2, 2022 by gmrhodes13
link not working removed

[SlyFox740[TK]]

all you need to do to modify the design to make it even better



strap 12" instead of 11"

use chicago screws for the top strapping instead of rivets.

for the handle strap use a cap rivet after fitting the blaster.



I used this exact same template from Troopermaster to convert my AP Holster from ESB to ANH.

I may end up needing to use a 12" handle strap as well though, I will know once my blaster is complete. My AP holster came with chicago screws for the top strapping and a cap rivet holding the handle strap on too.

[TK-4510[501st]]

I need the pattern for the DH-17. I know, its very similar, but does anyone have one?
