arduino: a cheap board for E11 blaster effects

[gmrhodes13[Staff]]

I would check the available space on these files, they are top notch

[renegade]

Hi there, first of all thanks skyone and all other contributors for making and maintaining this amazing project!

I'd like to use the easy assembly kit for a double-barrel blaster rifle myself, but I haven't been able to find out where and how to order the kits. I read through the facebook page, but I don't have a facebook account so I'm not sure if I missed any non-public information there. Or is it just about ordering the PCB boards? Or is there a circuit layout for them somewhere that I missed, for us to use?

Could someone send me a pm or so to point me to the right direction?

Edited October 3, 2022 by renegade

[Ottosophie]

Hello, the subject of this post is really exciting.
Like others I started this project, and I'm looking for 2 things.
First of all the famous ZIP containing all the sounds,
and the PCB or a file allowing it to be ordered on the internet.
Thank you in advance for your answers.

[gmrhodes13[Staff]]

11 hours ago, Ottosophie said:

Hello, the subject of this post is really exciting.
Like others I started this project, and I'm looking for 2 things.
First of all the famous ZIP containing all the sounds,
and the PCB or a file allowing it to be ordered on the internet.
Thank you in advance for your answers.

You can find the sound files here: https://github.com/Protonerd/FX-BlasterOS/tree/master/Sounds



Manuel doesn't get on the forum very often and doesn't update this thread, you could reach out to him on Facebook https://www.facebook.com/fxblasterarduino

[Ottosophie]

Thanks a lot

[skyone]

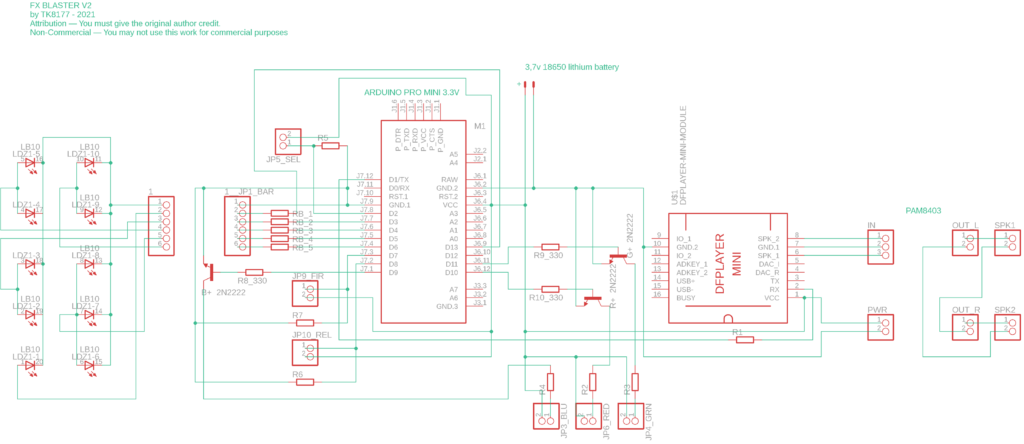

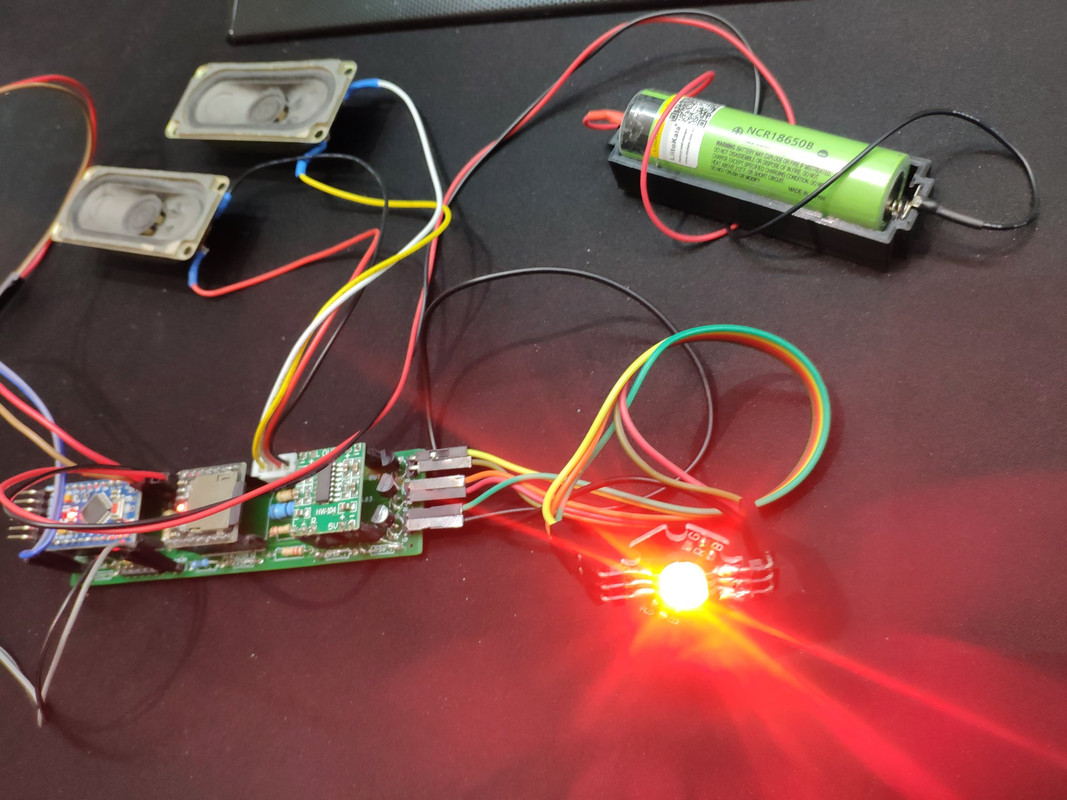

just to let you know that this is the most updated working scheme, using 3 tiny transitors instead of led drivers and a 3.7volts lithium battery.

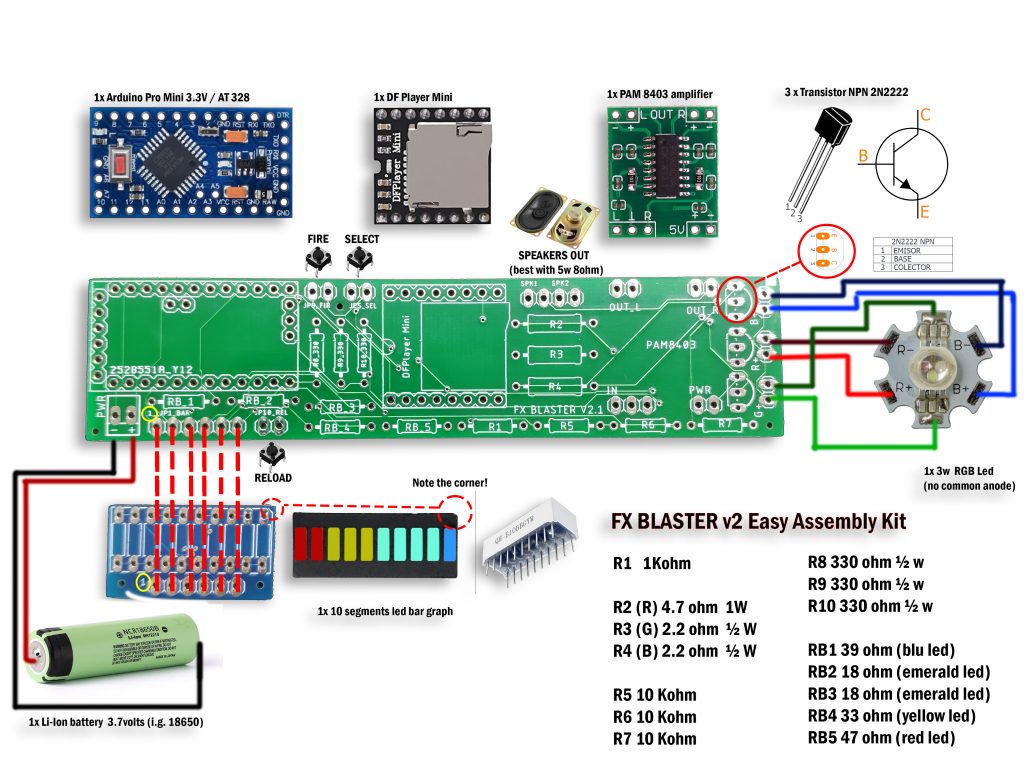

this is the easy assembly kit and all the components needed list





the most updated arduino code is here (bottom page):



for more info you can reach me on facebook here



Edited September 8, 2023 by skyone
