TK bondservnt[501st] Posted February 2, 2013 Report Posted February 2, 2013 I use electrical conduit from lowes! it's grey Quote
Lamont Posted February 6, 2013 Report Posted February 6, 2013 Well, there doesn't seem to be a way to get the beautiful drawings (pdf's) done in this project. A real shame after all the work everybody did. I've copied all the pictures and such from this thread for my use. If anybody cares I can post the pictures here. Though they are already here, just spread out. The Best Sterling Templates, Ever! would require the *.pdfs. If anybody has them could they post them? Please? -lamont Quote
sskunky Posted February 6, 2013 Report Posted February 6, 2013 It is a shame I was going to put a load of laser cut kits together for anyone interested in buying them but Lucas seems to have fallen off the radar. I have tried to email home a few times but to no avail. If he does find the time to get back to me you will all be the first to know. He was designing my web page too so I am keen to get that moving. Quote
Lamont Posted February 9, 2013 Report Posted February 9, 2013 Thank you sskunky, I hope he is ok and that nothing unfortunate is keeping him off-line. BTW, this is such nice work that I would like to post just one of the pdf's on another site and tell them about this work that you all did. I will, of course, give full credit to both Whitearmor.net and ZeroRoom (Lucas). Would that be ok? If you can get the laser cut kits out at a reasonable price that has got to be a winner! I wish you the best of luck with that. -lamont Quote
sixfootsideburns Posted March 7, 2013 Report Posted March 7, 2013 This is my first post, and I found this thread linked from another forum. From start to finish this is just awesome, colaboraion at its best! I've been a life long SW fan, and for years have been interested in getting into trooping and 501 but never took the dive. I figured starting with an E11 build could be a good place to start! The info in this thread is exactly what I was looking for. Having dimensions to go by is such a great resource and I appreciate everyones efforts in making this happen! I hope Lucas returns soon and final PDF plans can be compiled! Quote
LeMaxim[TK] Posted June 4, 2013 Report Posted June 4, 2013 Hi Troopers! I'm currently building my first E11 blaster and this thread has both helped and inspired me a lot. (my FISD build here) One thing I've noticed in this thread is that it seems that 38mm pipes are difficult to find in some places. I did some searching for my own build and found an international and easy source for steel pipes for E11 builds. I found a desk leg (called Galant) at IKEA that sells for a mere 10 USD and EUR / 5 GBP. (Link for IKEA US webshop) Check out my build for a step by step of how I used it or my general tip to the forum for more general information (FISD link) I hope this may helps someone. I also look forward to seeing this thread continue. It's a great example of the hard work and team spirit that seems to be in the FISD genes. Quote
nDreaZ Posted July 4, 2013 Report Posted July 4, 2013 I'm using the A4.40mm.TubeTemplate, on a ABS 40mm pipe. But when I fold it round the pipe, there is like a 10mm gap. I've measured the pipe, and it's 40mm outside diameter. Is there anything to be done, before printing it? Quote
sskunky Posted July 5, 2013 Report Posted July 5, 2013 (edited) Make sure when you print the templates that you have them at 100% scale and not scale to fit. Edited July 5, 2013 by sskunky Quote

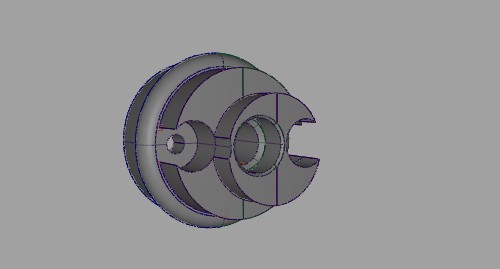

elleerre Posted April 16, 2014 Report Posted April 16, 2014 Hi folks, sorry for the necro-posting here, but if these are the best sterling templates ever, I cannot ask for something better. I'm doing the 3D model for my blaster (I'll make a 3D print of some parts), and there is a question regarding the muzzle tip. Following the template found here, it comes out like this: But according to this image the shape of the last section it's a bit different. It seems like it's on a lower position than the template one. Could anyone please confirm this? Thanks, Lorenzo Quote
PlayfulWolfCub Posted April 16, 2014 Report Posted April 16, 2014 (edited) On 4/17/2014 at 2:43 AM, elleerre said: Hi folks, sorry for the necro-posting here, but if these are the best sterling templates evere I cannot ask for something better. I'm doing the 3D model for my blaster (I'll make a 3D print of the parts), and there is a question regarding the muzzle. the shape of the last section it's a bit different. It seems like it isn't perfectly circular, but oval, and for sure it's on a lower position than the template one. Could anyone please confirm this? Thanks, Lorenzo Hi Lorenzo, These plans never got finished because sadly Lucas (Zeroroom) vanished off the face of the earth. I know Sskunky would like to finish them up, as would I, but it's a matter of getting round to it. To answer your specific question though.... here's a pdf of the muzzle that I made green corrections on for Lucas: ------------ Cheers, Andy Edited December 6, 2020 by gmrhodes13 link not working, removed gmrhodes13 2020 Quote
elleerre Posted April 16, 2014 Report Posted April 16, 2014 That's great Andy, thank you so much. And, is there a database where to find the complete, correct, templates? I assume there are some corrections in other too. I've found so much "definitive" templates that I really begin to wonder which is the right version... Quote
elleerre Posted April 16, 2014 Report Posted April 16, 2014 (edited) Last thing: is it possible to find the following distance? It's essential for the right positioning of the last element. Huge thanks in advance. Edited April 16, 2014 by elleerre Quote
PlayfulWolfCub Posted April 16, 2014 Report Posted April 16, 2014 On 4/17/2014 at 4:04 AM, elleerre said: Last thing: is it possible to find the following distance? It's essential for the right positioning of the last element. Huge thanks in advance. The grey muzzle diagram called "Front View" in the "Finished Assemblly" box of the pdf is accurate & life-size. Quote
PlayfulWolfCub Posted April 16, 2014 Report Posted April 16, 2014 And, is there a database where to find the complete, correct, templates? No, not of the complete corrected booklet of plans that Lucas was working on because they never got corrected & finalised. Hopefully there will be one day. Cheers, Andy Quote
elleerre Posted April 16, 2014 Report Posted April 16, 2014 Got it, thanks. It's 6 mms Thanks to everyone, people, you have made a great job. Quote
Dday[501st] Posted July 30, 2014 Report Posted July 30, 2014 Bumping this because it's got some great templates on page 5 Quote
CommanderZel Posted May 7, 2015 Report Posted May 7, 2015 On 4/17/2014 at 3:05 AM, PlayfulWolfCub said: Hi Lorenzo, These plans never got finished because sadly Lucas (Zeroroom) vanished off the face of the earth. I know Sskunky would like to finish them up, as would I, but it's a matter of getting round to it. To answer your specific question though.... here's a pdf of the muzzle that I made green corrections on for Lucas: -------- Cheers, Andy Did anybody ever get around to finishing these up? My friends and I are working on getting a 3D printer up and running and I think that this would make things a little simpler, to a certain degree. Quote
Dday[501st] Posted May 24, 2015 Report Posted May 24, 2015 They look pretty good as they are. There were some minor corrections that were needed when I went to the machinist and comparing them to an on hand sterling, but they are really close. Quote
CommanderZel Posted May 24, 2015 Report Posted May 24, 2015 They look pretty good as they are. There were some minor corrections that were needed when I went to the machinist and comparing them to an on hand sterling, but they are really close. I'm sure the templates are great, but I was thinking more in terms of files for 3D printing. It seems like they were going to get made by someone and then that individual disappeared? Quote
Locitus[Admin] Posted May 24, 2015 Report Posted May 24, 2015 I'm sure the templates are great, but I was thinking more in terms of files for 3D printing. It seems like they were going to get made by someone and then that individual disappeared? You will need to create the CAD files yourself. But at least you have some solid measurements to go by, using these templates. Quote
CommanderZel Posted May 24, 2015 Report Posted May 24, 2015 You will need to create the CAD files yourself. But at least you have some solid measurements to go by, using these templates. Alright, I'll see if I can get all that together. If I can figure it all out then I'll post them here if there's interest in that sort of thing. Quote
Locitus[Admin] Posted May 24, 2015 Report Posted May 24, 2015 Alright, I'll see if I can get all that together. If I can figure it all out then I'll post them here if there's interest in that sort of thing. Good idea. We all win by sharing information with each other. For big project files FISD can provide hosting of the files in order not to have to rely on external services. Quote
CommanderZel Posted May 24, 2015 Report Posted May 24, 2015 Good idea. We all win by sharing information with each other. For big project files FISD can provide hosting of the files in order not to have to rely on external services. Awesome. A friend of mine and I are going to be working on building our own 3D printers this summer, and this seems to me to be just about the perfect project to work on over a log period of time. If I can ever get them together I'll let you all know on here. Quote
Locitus[Admin] Posted May 24, 2015 Report Posted May 24, 2015 Awesome. A friend of mine and I are going to be working on building our own 3D printers this summer, and this seems to me to be just about the perfect project to work on over a log period of time. If I can ever get them together I'll let you all know on here. Excellent. Good luck! Quote
